The automatic elbow cladding equipment for elbows adopts a fully intelligent PLC process control system, which has a variety of operating functions, such as intelligent fully automatic setting function of main process parameters, storage function of main process parameters, etc., which can effectively realize automatic welding of the inner wall of the elbow. Surfacing welding, the operation is smooth and reliable, the flatness after welding is high, and the surfacing welding effect is good.
This equipment can realize cladding welding of variable thickness pipe walls. The cladding width and thickness are adjustable and easy to adjust. It has the characteristics of high efficiency, stability, flexibility, and high degree of automation. It can greatly improve production efficiency and product quality, and reduce production costs. It can reduce the labor intensity of workers, adapt to the inner wall surfacing welding of different types of elbows, and has a wide range of applications.
Xinghe Keer uses fully automatic cladding equipment for surfacing cladding of pipe fittings, flanges, forgings, valve parts and special-shaped parts. Our welding method is called hot wire TIG welding, also known as Gas Tungsten Arc Welding (GTAW). The welding process meets the relevant requirements of ASME IX, NACE, MR0175, API 6A, and API 5LD, also meets different customers’ different requirements for Fe dilution rates.

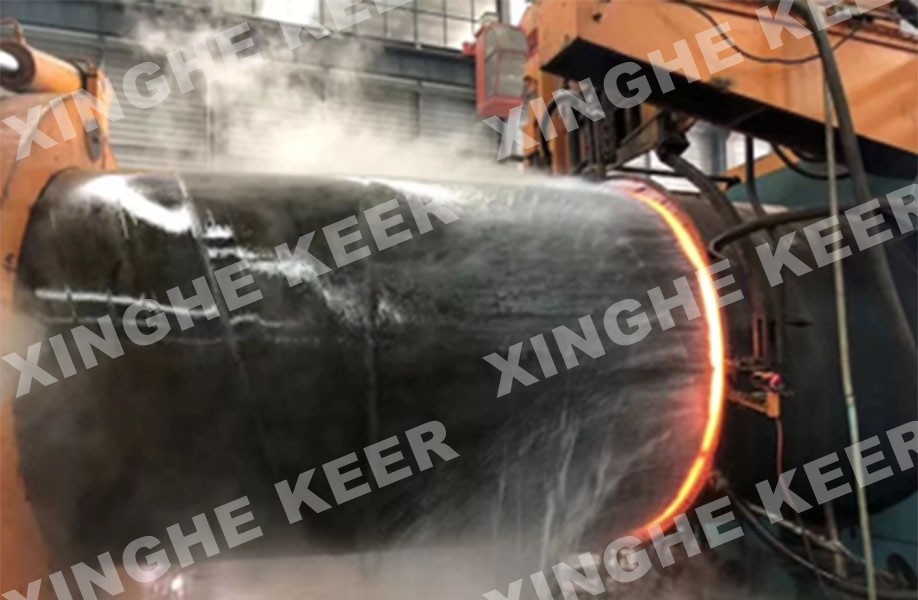

| Cladding Pipe | Standard: API 5LD, SY/T 6623 |
| NPS≥2" | |
| Max. Length: 12.5 Meters | |
| Cladding Bend | Standard: API 5LD,ANSI B16.49, ISO15590-1 |
| Hot Bending After Cladding, R≥3D | |
| Cladding Flange | Various Flanges In The Pipeline Process API 6A, API 17D,ASME B16.5 |
| Cladding Pipe Fittings | Elbow, Tee, Reduced Pipe, Forged Pipe |
| Cladding Valves | Valve Body, Bonnet, Ball |
| PWHT (Post-welding Heat Treatment) | |
| Machining After Cladding | |
Quality Control
| Inspection Stages | Description | Check Item |
| Pre-cladding | Raw Material Factory Inspection | Delivery Order, Mill Certificates, Reference Standards, GRN |
| Dimensional Inspection | Thickness and Overall Dimensions | |
| Cladding | Process Control | In accordance with the WPS (Welding Procedure Specification) |
| Post Cladding | Dimensional Inspection after Cladding | Thickness of workpiece (with the cladding thickness) and overall dimensions (shrinkage, distortion), chemical component analysis, dilution rate of Ferrite |
| Liquid Penetrant Testing | Surface Defect | |
| Ultrasonic Testing | Internal Defect |
