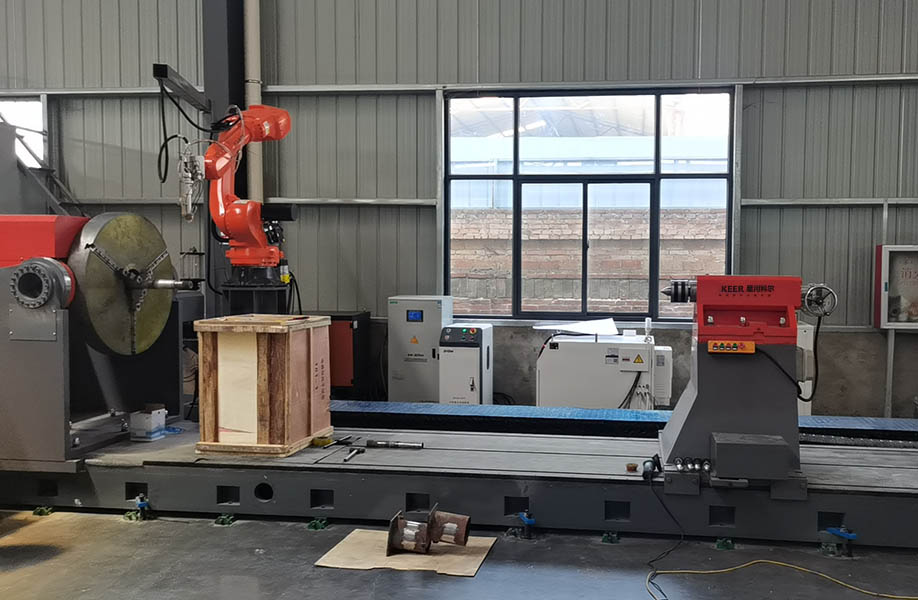

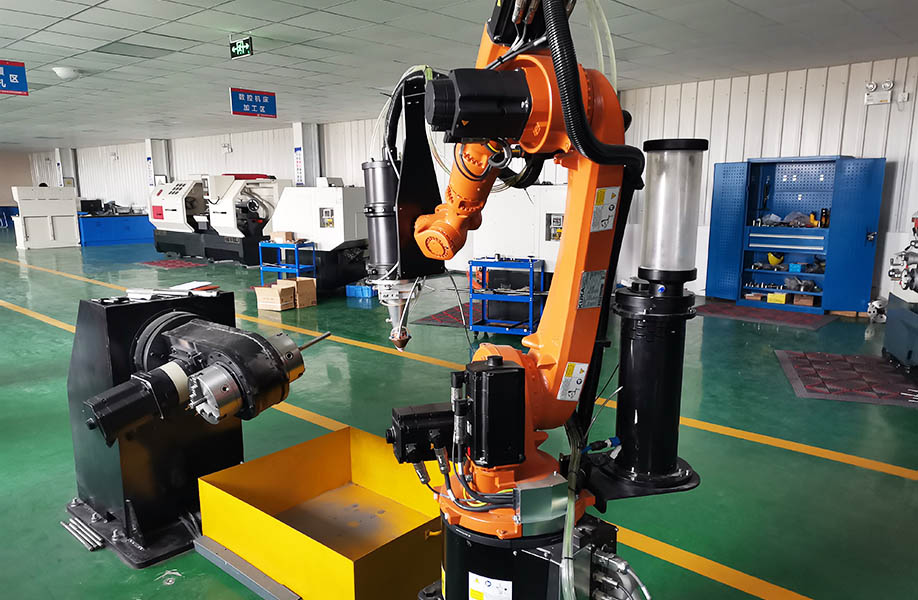

The laser cladding system with robot arm motion control can be used for cladding processing of outer walls, inner holes and special-shaped parts. This configuration features flexible movement and multi-direction and multi-angle cladding processing. In particular, for some large workpieces that need on-site processing, the robot and laser system can be integrated as a whole, and the mobile loader design is convenient for the transportation and handling of the equipment.
| Project | Technology Parameters | |||
| Model | KEER-3000 | KEER-6000 | KEER-8000 | KEER-12000 |
| Laser Power | 3000W | 6000W | 8000W | 12000W |
| Cladding Head | Ring or multi-channel (melting powder) | Center powder feeding/wire feeding | ||
| Wire feeder/Powder feeder | Powder feeder | Wire feeder/Powder feeder | ||
| Optional cladding materials | Iron-based nickel-based metal powder | Iron-based nickel-based metal powder or metal wire | ||
| Movement type | Robot arm/positioner/rotating platform | |||
Product advantages
● Core technology of central wire feeding/powder feeding, high utilization rate of powder and wire.
● Fully water-cooled cladding head structure design, no sticky powder or blockage in the cladding head, no need to replace accessories regularly, saving costs.
● Provide one-stop services such as powder/wire and process guidance.
● The machine tool electrical system adopts well-known brand components, and the CNC system has high precision.
● Large encirclement protection airport, horizontal ordinary machine tools, and also support the transformation of old lathes.
